Chinese 1.2ton mini excavator XN12 small digger XN08 XN16 XN18 XN20 XN35 bagger with cheap price
Product Description
WITH CE CERTIFIE, HOT SALE IN GERMANY, FRANCE, UK AND SO ON NOW.
This excavator is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain.
| Model | XN12 |
| Brand | XINIU |
| Operating Weight | 1040kg |
| Digging bucket capacity | 0.025cbm/120kg |
| Digging bucket width | 350mm, can add narrow bucket is 200mm |

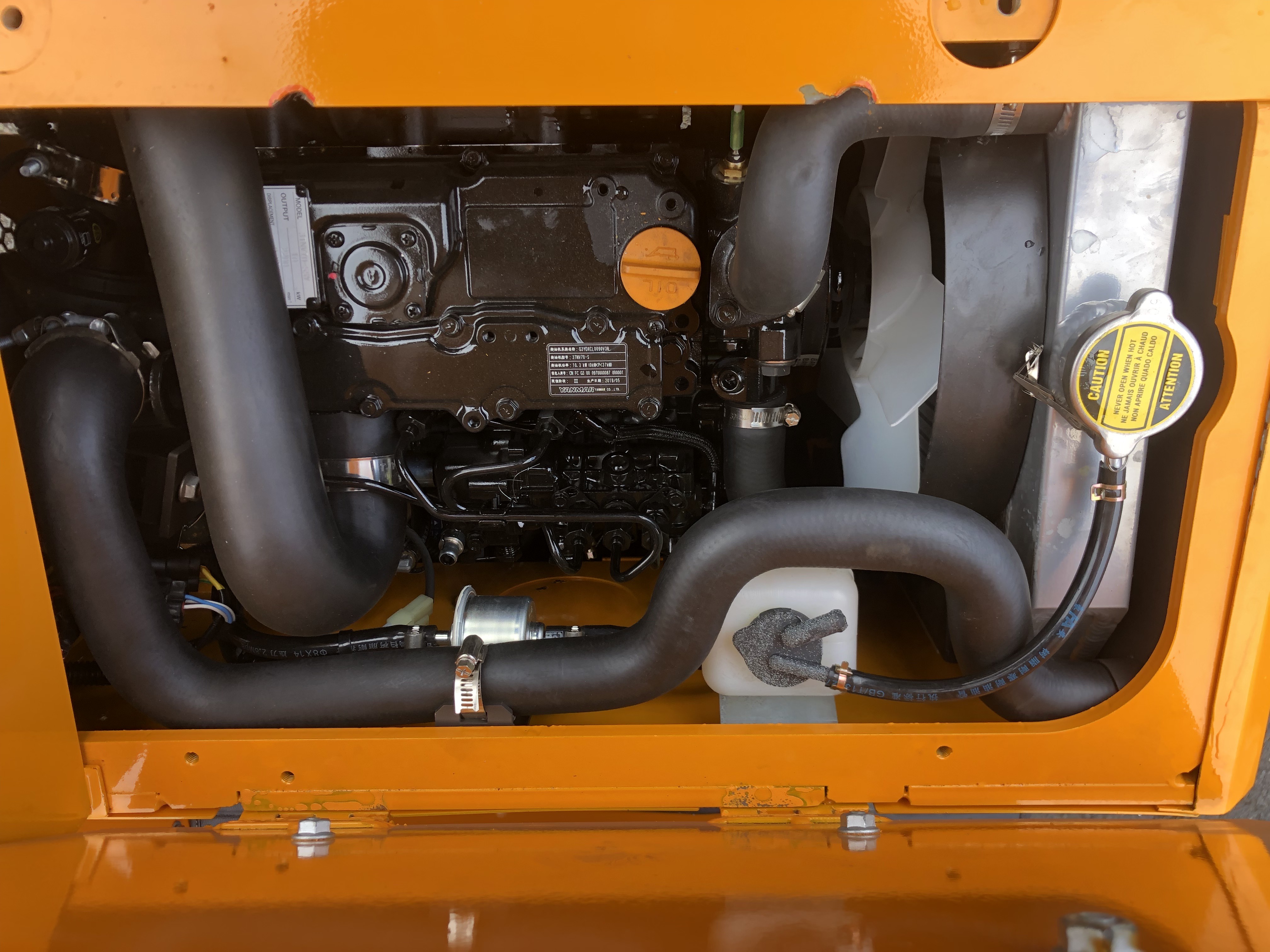

| Engine | (3TNV70) |
| Rated power | 10kw/2200/r/min |
| Displacement | 0.854L |
| Bore stroke | three cylinder, water cool |
| Main pump | SAI-SIDA |
| Pump flow | 16L/min |
| Hydraulic pump perssure | 16Mpa |
| Valve | BEIFANG |
| Swing motor | SJ-TECH (MP-1-160) |
| Traveling motor | KER-SEN (OMS-2450) |
| Hydraulic oil tank | 16.5L |
| Diesel oil tank | 7L |
| Arm digging force | 5.0Kn |
| Bucket digging force | 9.5Kn |
| Electric pressure | 12V |
| Electrick power | 5W |
| MAIN DEMENSIONS |
| Overall dimension( LxWxH) | 2770x896x1490 mm |
| Wheelbase | 910 mm |
| Total length of track on land | 1230mm |
| Platform ground clearance | 380 mm |
| Platform back turning radius | 784 mm |
| Chassis width | 896 mm |
| Track width | 180 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
| OPERATING RANGE |
| Max. Digging depth | 1650 mm |
| Max. Vertical digging depth | 1375 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 2850 mm |
| Min. Rotation radius | 1330 mm |
| Max. Upgrade height of bulldozer blade | 345 mm |
| Max. Digging depth of bulldozer blade | 255 mm |
Our products have been exported to more than 50 countries and regions. We have agents in whole European countries, Australia, New Zealand, South asia etc.
Below are our products list:
1) Wheel excavators: 5t - 12t; 2) Crawler excavator 0.8t -24t;
3) Backhoe loader: 6t, 7t. 4) Truck-mounted concrete pumps: 26m 33m
5) Electrical kids excavator with our Rhinoceros patents design.
FAQ
2. What kind of payment terms can be accepted?
A: Normally we can workd on T/T
3. Which incoterms 2010 terms can we work?
A: Normally we can workd on FOB (QINGDAO), CFR, CIF
4. What about the delivery time?
A: Within 7-10 days after receiving the deposit
5. What about the warranty time?
A: 1 year or 2000 hours. We shoulder all costs during the warranty period, include the freight.
6. What about the Minimum Oorder Quantity?
A: The MOQ is 1 unit.
